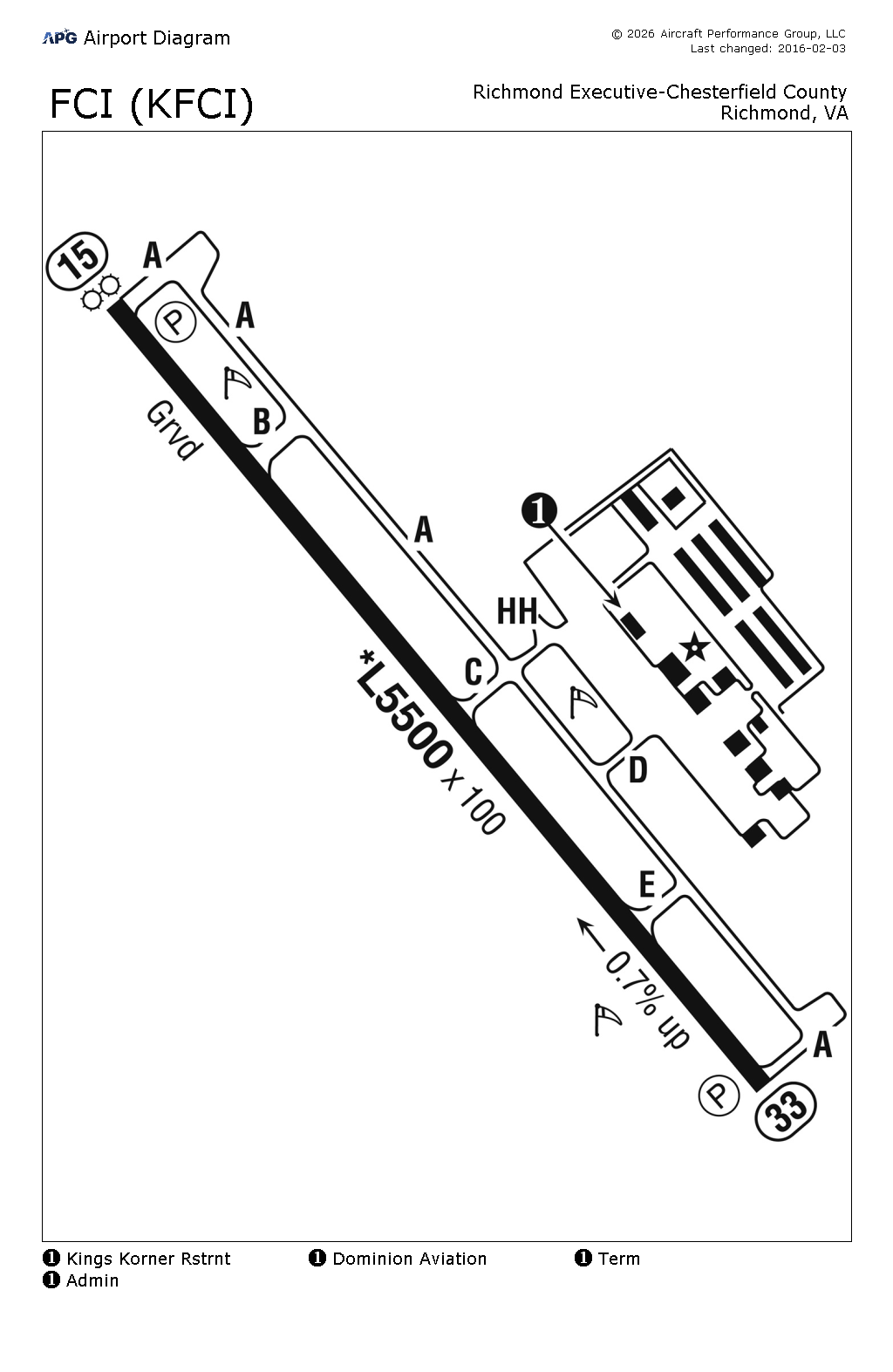

ODP RICHMOND EXEC/CHESTERFIELD COUNTY,
RICHMOND, VA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
TAKEOFF OBSTACLE NOTES: RWY 15: TREE 2 FT FROM DER, 320 FT RIGHT
OF CENTERLINE, 202 FT MSL. TREE 23 FT FROM DER, 280 FT RIGHT OF
CENTERLINE, 203 FT MSL. TREE 55 FT FROM DER, 260 FT RIGHT OF
CENTERLINE, 204 FT MSL. TREE 103 FT FROM DER, 266 FT LEFT OF
CENTERLINE, 202 FT MSL. TREES BEGINNING 105 FT FROM DER, 297 FT
LEFT OF CENTERLINE, UP TO 203 FT MSL. TREE 192 FT FROM DER, 543 FT
LEFT OF CENTERLINE, 206 FT MSL. TREE 218 FT FROM DER, 550 FT LEFT
OF CENTERLINE, 211 FT MSL. TRAVERSE WAY 467 FT FROM DER, 615 FT
RIGHT OF CENTERLINE, 218 FT MSL. TRAVERSE WAY 563 FT FROM DER, 615
FT RIGHT OF CENTERLINE, 219 FT MSL. TRAVERSE WAY 633 FT FROM DER,
615 FT RIGHT OF CENTERLINE, 220 FT MSL. TREES, TRAVERSE WAYS
BEGINNING 701 FT FROM DER, 580 FT RIGHT OF CENTERLINE, UP TO 246 FT
MSL. TREE 1527 FT FROM DER, 838 FT RIGHT OF CENTERLINE, 249 FT MSL.
TREES BEGINNING 2032 FT FROM DER, 888 FT LEFT OF CENTERLINE, UP TO
258 FT MSL. TREES BEGINNING 2269 FT FROM DER, 815 FT RIGHT OF
CENTERLINE, UP TO 260 FT MSL. RWY 33: TREES BEGINNING 64 FT FROM
DER, 273 FT RIGHT OF CENTERLINE, UP TO 238 FT MSL. POLE 1545 FT
FROM DER, 704 FT RIGHT OF CENTERLINE, 36 FT AGL/278 FT MSL. TREE
1844 FT FROM DER, 863 FT LEFT OF CENTERLINE, 290 FT MSL. TREES
MSL.
END PART 1 OF 2
ODP RICHMOND EXEC/CHESTERFIELD COUNTY,
RICHMOND, VA.
BEGINNING 1858 FT FROM DER, 793 FT LEFT OF CENTERLINE, UP TO 294 FT
MSL. TREE 2404 FT FROM DER, 916 FT LEFT OF CENTERLINE, 297 FT MSL.
TREE 2773 FT FROM DER, 660 FT LEFT OF CENTERLINE, 306 FT MSL. POLE
3462 FT FROM DER, 1093 FT RIGHT OF CENTERLINE, 124 FT AGL/323 FT
MSL.
END PART 2 OF 2
|
